STP6N25FI, STP6N25 Datasheet - ST Microelectronics

STP6N25FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

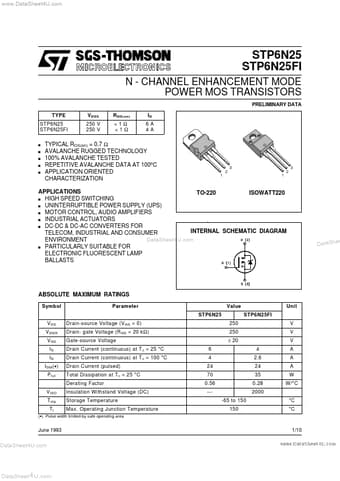

www.DataSheet4U.com STP6N25 STP6N25FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STP6N25 STP6N25FI s s s s s VDSS 250 V 250 V R DS(on) <1Ω <1Ω ID 6A 4A TYPICAL RDS(on) = 0.7 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 APPLICATIONS TO-220 ISOWATT220 s HIGH SPEED SWITCHING s UNINTERRUPTIBLE POWER SUPPLY (UPS) s MOTOR CONTROL, AUDIO AMPLIFIERS s INDUSTRIAL ACTUATORS s D.

STP6N25_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP6N25FI, STP6N25. Please refer to the document for exact specifications by model.
STP6N25FI Datasheet Preview Page 2 STP6N25FI Datasheet Preview Page 3

Datasheet Details

Part number:

STP6N25FI, STP6N25

Manufacturer:

STMicroelectronics ↗

File Size:

434.67 KB

Description:

N - channel enhancement mode power mos transistors.

Note:

This datasheet PDF includes multiple part numbers: STP6N25FI, STP6N25.
Please refer to the document for exact specifications by model.
