STP6NB25

N-CHANNEL MOSFET

ST Microelectronics

STP6NB25 General Description

Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout INTERNAL SCHEMATIC DIAGRAM coupled with the Company’s proprieraty edge termination structure, gives the lowest R.

STP6NB25 Datasheet (302.89 KB)

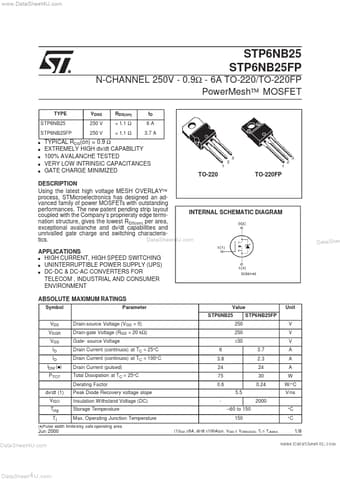

STP6NB25 Datasheet Preview — Preview of STP6NB25 PDF

Datasheet Details

Part number:

STP6NB25

Manufacturer:

STMicroelectronics ↗

File Size:

302.89 KB

Description:

N-channel mosfet.
www.DataSheet4U.com N-CHANNEL 250V - 0.9Ω - 6A TO-220/TO-220FP PowerMesh™ MOSFET TYPE STP6NB25 STP6NB25FP s s s s s STP6NB25 STP6NB25FP VDSS 250 V .
