STP6NB80FP, STP6NB80 N-Channel MOSFET

STP6NB80FP Description

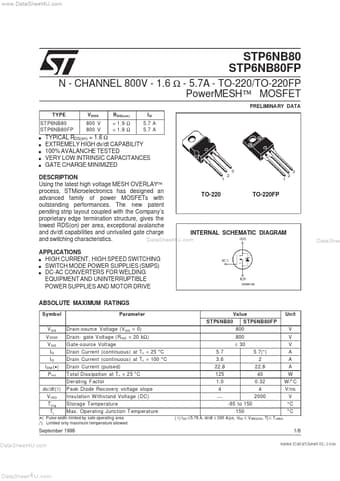

www.DataSheet4U.com STP6NB80 STP6NB80FP N - CHANNEL 800V - 1.6 Ω - 5.7A - TO-220/TO-220FP PowerMESH ™ MOSFET PRELIMINARY DATA TYPE ST P6NB80 ST P6NB8.
1 1 Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an TO-220 TO-220FP advanced family of power MOSFETs with outs.

STP6NB80FP Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1) V ISO Ts tg Tj Parameter Drain-source Voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP6NB80FP, STP6NB80. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP6NB80FP, STP6NB80
Manufacturer
STMicroelectronics ↗
File Size
223.34 KB
Datasheet
STP6NB80_STMicroelectronics.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: STP6NB80FP, STP6NB80.
Please refer to the document for exact specifications by model.
