STP6NB80 Datasheet - ST Microelectronics

Datasheet Details

Part number:

STP6NB80

Manufacturer:

STMicroelectronics ↗

File Size:

223.34 KB

Description:

N-Channel MOSFET

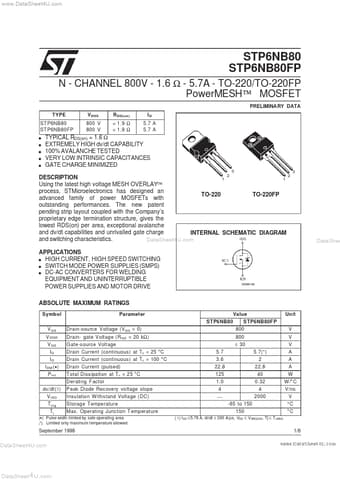

www.DataSheet4U.com STP6NB80 STP6NB80FP N - CHANNEL 800V - 1.6 Ω - 5.7A - TO-220/TO-220FP PowerMESH ™ MOSFET PRELIMINARY DATA TYPE ST P6NB80 ST P6NB80FP s s s s s V DSS 800 V 800 V R DS(on) < 1.9 Ω < 1.9 Ω ID 5.7 A 5.7 A TYPICAL RDS(on) = 1.6 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TES

STP6NB80_STMicroelectronics.pdf

Preview of STP6NB80 PDF
STP6NB80 Datasheet Preview Page 2 STP6NB80 Datasheet Preview Page 3

STP6NB80, N-Channel MOSFET

1 1 Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an TO-220 TO-220FP advanced family of power MOSFETs with outstanding performances.

The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on)
