STP6N90K5 Datasheet, Mosfet, STMicroelectronics

STP6N90K5 Features

  • Mosfet Order code STP6N90K5 VDS 900 V RDS(on) max. 1.10 Ω ID 6A
  • Industry’s lowest RDS(on) x area
  • Industry’s best FoM (figure of merit)
  • Ultra-low gate charge <

PDF File Details

Part number:

STP6N90K5

Manufacturer:

STMicroelectronics ↗

File Size:

587.98kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical str

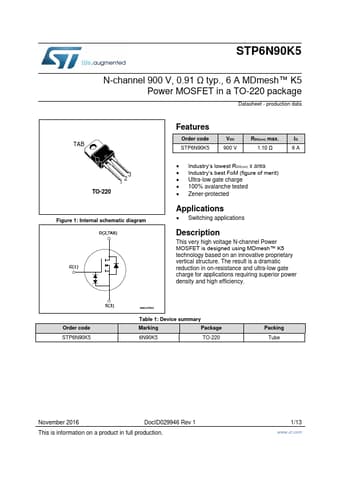

Datasheet Preview: STP6N90K5 📥 Download PDF (587.98kb)
Page 2 of STP6N90K5 Page 3 of STP6N90K5

STP6N90K5 Application

  • Applications
  • Switching applications Description This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology base
