STP6N62K3 Datasheet - STMicroelectronics

STP6N62K3 N-channel Power MOSFET

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. These devices boast an extremely low onresistance, superior dynamic performance and high avalan.

STP6N62K3 Features

* TAB Order codes STF6N62K3 STFI6N62K3 STI6N62K3 STP6N62K3 STU6N62K3 VDSS RDS(on) max. ID 620 V < 1.2 Ω 5.5 A PTOT 30 W 30 W 90 W 90 W 90 W

* 100% avalanche tested

* Extremely high dv/dt capability

* Gate charge minimized

* Very low intrinsic capacitance

* Improved diode rever

STP6N62K3-STMicroelectronics.pdf

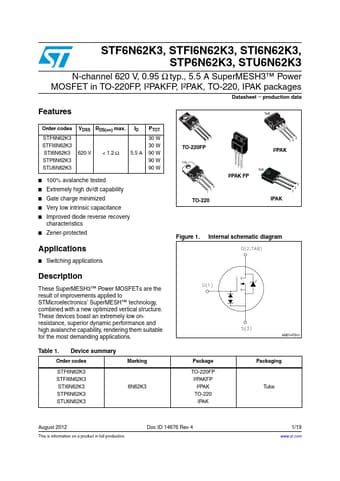

Preview of STP6N62K3 PDF
STP6N62K3 Datasheet Preview Page 2 STP6N62K3 Datasheet Preview Page 3

Datasheet Details

Part number:

STP6N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

546.55 KB

Description:

N-channel power mosfet.
