STP6NB25FP, STP6NB25 N-CHANNEL MOSFET

STP6NB25FP Description

www.DataSheet4U.com N-CHANNEL 250V - 0.9Ω - 6A TO-220/TO-220FP PowerMesh™ MOSFET TYPE STP6NB25 STP6NB25FP s s s s s STP6NB25 STP6NB25FP VDSS 250 V .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STP6NB25FP Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s UNINTERRUPTIBLE POWER SUPPLY (UPS) s DC-DC & DC-AC CONVERTERS FOR TELECOM , INDUSTRIAL AND CONSUMER ENVIRONMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Jun 2000 Parameter Drain-source Voltage (VGS = 0) Drain-gate V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP6NB25FP, STP6NB25. Please refer to the document for exact specifications by model.

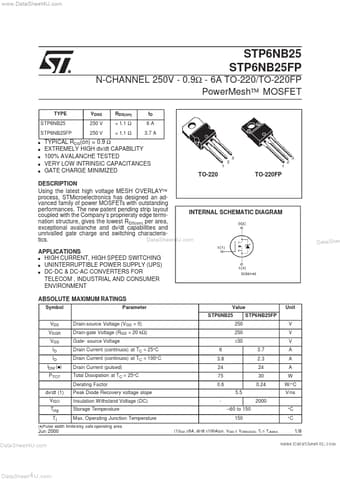

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP6NB25FP, STP6NB25
Manufacturer
STMicroelectronics ↗
File Size
302.89 KB
Datasheet
STP6NB25_STMicroelectronics.pdf
Description
N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: STP6NB25FP, STP6NB25.
Please refer to the document for exact specifications by model.
