STP7NC40 Datasheet - ST Microelectronics

N-CHANNEL MOSFET

STP7NC40 General Description

The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. The layout refinements introduced greatly improve the Ron *area figure of merit while keeping the device at the leading edge for what concerns swithing speed, gate charge and ruggedness. TO-220 INTERNAL SCHEMATIC DIAGRA.

STP7NC40 Datasheet (244.99 KB)

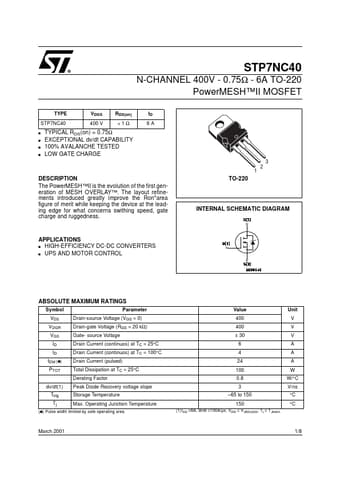

STP7NC40 Datasheet Preview — Preview of STP7NC40 PDF

Datasheet Details

Part number:

STP7NC40

Manufacturer:

STMicroelectronics ↗

File Size:

244.99 KB

Description:

N-channel mosfet.
N-CHANNEL 400V - 0.75Ω - 6A TO-220 PowerMESH™II MOSFET TYPE STP7NC40 s s s s STP7NC40 VDSS 400 V RDS(on) <1Ω ID 6A TYPICAL RDS(on) = 0.75Ω EXCEPT.
