STP7NC70ZFP, STP7NC70Z - N-CHANNEL MOSFET

ST Microelectronics

The STP7NC70ZFP by ST Microelectronics is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

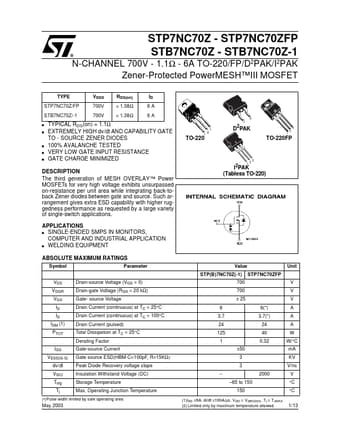

STP7NC70ZFP N-CHANNEL MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STP7NC70ZFP** N-CHANNEL MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STP7NC70ZFP, STP7NC70Z
Manufacturer	STMicroelectronics
File Size	529.51 KB
Description	N-CHANNEL MOSFET
Datasheet	STP7NC70Z_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STP7NC70ZFP, STP7NC70Z. Please refer to the document for exact specifications by model.
Additional preview pages of the STP7NC70ZFP datasheet.

STP7NC70ZFP Product details

Description

The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toback Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropiate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 3/13 STP7NC70Z.
