STPS3150U

3A power Schottky rectifier

ST Microelectronics

STPS3150U Features

* Negligible switching losses

* Low forward voltage drop for higher efficiency and extended battery life

* Surface mount miniature package

* Low thermal resistance

* ECOPACK2 component Applications

* LED Lighting

* Battery charger

* DC

STPS3150U General Description

150 V power Schottky rectifier are suited for switch mode power supplies on up to 24 V rails and high frequency converters. Packaged in axial, SMB, SMA Flat Notch and SMB Flat, the STPS3150 is ideal for use in consumer and computer applications like TV, STB, PC and DVD where low drop forward voltage.

STPS3150U Datasheet (385.52 KB)

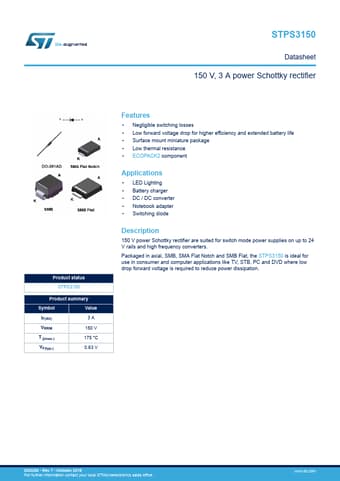

STPS3150U Datasheet Preview — Preview of STPS3150U PDF

Datasheet Details

Part number:

STPS3150U

Manufacturer:

STMicroelectronics ↗

File Size:

385.52 KB

Description:

3a power schottky rectifier.
STPS3150 Datasheet 150 V, 3 A power Schottky rectifier Product status STPS3150 Product summary Symbol Value IF(AV) 3A VRRM 150 V T j(max.) 1.
