STPS3170

Power Schottky rectifier

STMicroelectronics

STPS3170 Features

* Negligible switching losses

* High junction temperature capability

* Very small conduction losses

* Low leakage current

* Avalanche rated

* ECOPACK2 component Applications

* Switching diode

* SMPS

* DC / DC converter

STPS3170 General Description

The STPS3170 is a 170 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SMA Flat, SMA Flat Notch and SMB Flat, the STPS3170 is ideal for use in low voltage, high frequency inverters, freewheeling and polarity protection. Also ideal for all.

STPS3170 Datasheet (376.61 KB)

STPS3170 Datasheet Preview — Preview of STPS3170 PDF

Datasheet Details

Part number:

STPS3170

Manufacturer:

STMicroelectronics ↗

File Size:

376.61 KB

Description:

Power schottky rectifier.

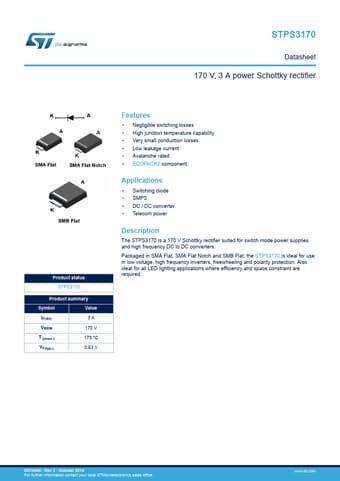

STPS3170 Datasheet 170 V, 3 A power Schottky rectifier Product status STPS3170 Product summary Symbol Value IF(AV) 3A VRRM 170 V T j(max.) 1.
