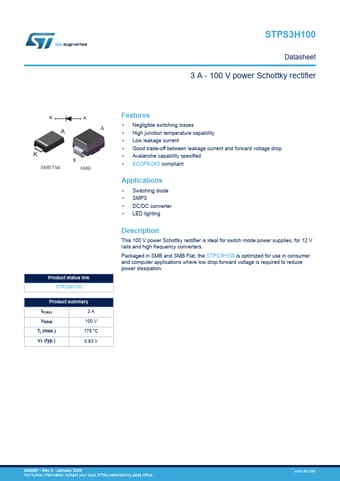

STPS3H100 Datasheet Preview — Preview of STPS3H100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STPS3H100
Manufacturer	STMicroelectronics
File Size	216.61 KB
Description	Power Schottky rectifier
Datasheet	STPS3H100_STMicroelectronics.pdf

STPS3H100 Product details

Description

This 100 V power Schottky rectifier is ideal for switch mode power supplies, for 12 V rails and high frequency converters.

Features

Negligible switching losses.
High junction temperature capability.
Low leakage current.
Good trade-off between leakage current and forward voltage drop.
Avalanche capability specified.
ECOPACK2 compliant.
