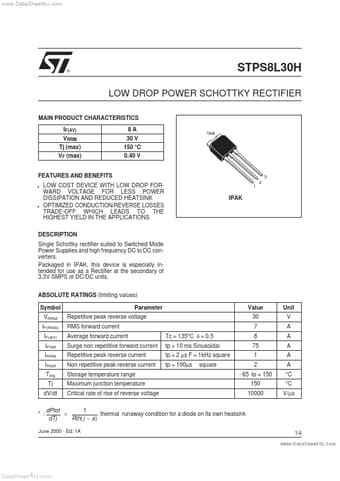

STPS8L30H

LOW DROP POWER SCHOTTKY RECTIFIER

ST Microelectronics

STPS8L30H Features

* n 8A 30 V 150 °C 0.40 V TAB 3 1 2 n LOW COST DEVICE WITH LOW DROP FORWARD VOLTAGE FOR LESS POWER DISSIPATION AND REDUCED HEATSINK OPTIMIZED CONDUCTION/REVERSE LOSSES TRADE-OFF WHICH LEADS TO THE HIGHEST YIELD IN THE APPLICATIONS IPAK DESCRIPTION Single Schottky rectifier suited to Switched Mo

STPS8L30H General Description

Single Schottky rectifier suited to Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in IPAK, this device is especially intended for use as a Rectifier at the secondary of 3.3V SMPS or DC/DC units. ABSOLUTE RATINGS (limiting values) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM I.

STPS8L30H Datasheet (162.22 KB)
