STPS8L30B Low drop power Schottky rectifier

STPS8L30B Description

STPS8L30 Low drop power Schottky rectifier Datasheet - production data A K K K A NC DPAK A NC .
Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters.

STPS8L30B Features

* Low cost device with low drop forward voltage for less power dissipation and reduced heatsink

STPS8L30B Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max. ) VF (typ. ) 8A 30 V 150 °C 0.35 V October 2016 DocID5515 Rev 5 This is information on a product in full production. 1/9 www. st. com Characteristics STPS8L30 1 Characteristics Table 2: Absolute ratings (limiting values at 25 °C, u

📥 Download Datasheet

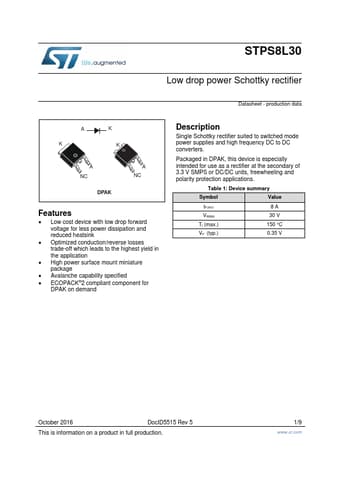

Preview of STPS8L30B PDF
datasheet Preview Page 2 datasheet Preview Page 3
