STPS80150CW Datasheet - ST Microelectronics

power Schottky rectifier

STPS80150CW Features

* High junction temperature capability

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Low thermal resistance

* High frequency operation

* ECOPACK®2 compliant Applications

* Switching diode

* SM

STPS80150CW General Description

This dual center tab Schottky rectifier is optimized for high frequency switched mode power supplies. Packaged in TO-247, the STPS80150C combines high current rating and low volume to enhance both reliability and power density of the application. DS3633 - Rev 2 - June 2018 For further information c.

STPS80150CW Datasheet (198.63 KB)

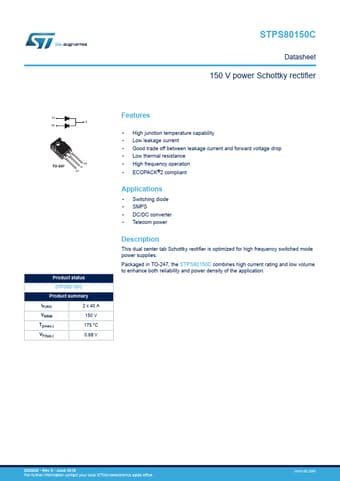

STPS80150CW Datasheet Preview — Preview of STPS80150CW PDF

Datasheet Details

Part number:

STPS80150CW

Manufacturer:

STMicroelectronics ↗

File Size:

198.63 KB

Description:

Power schottky rectifier.
STPS80150C Datasheet 150 V power Schottky rectifier A1 K A2 TO-247 A2 K A1 Product status STPS80150C Product summary IF(AV) 2 x 40 A VRRM 15.
