STPS80L15TV

LOW DROP OR-ing POWER SCHOTTKY DIODE

STPS80L15TV Features

* VERY LOW DROP FORWARD VOLTAGE FOR LESS POWER DISSIPATION AND REDUCED HEATSINK INSULATED PACKAGE: Insulated voltage = 2500 V (RMS) Capacitance = 45 pF DESCRIPTION Dual Schottky rectifier suited for Switched Mode Power Supplies and DC to DC power converters. Packaged in ISOTOPTM, this device is especi

STPS80L15TV General Description

Dual Schottky rectifier suited for Switched Mode Power Supplies and DC to DC power converters. Packaged in ISOTOPTM, this device is especially intended for use as an OR-ing diode in fault tolerant power supply equipments. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM .

STPS80L15TV Datasheet (177.20 KB)

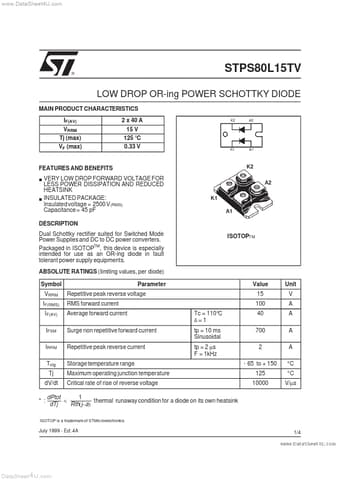

Preview of STPS80L15TV PDF

Datasheet Details

Part number:

STPS80L15TV

Manufacturer:

STMicroelectronics ↗

File Size:

177.20 KB

Description:

Low drop or-ing power schottky diode.
www.DataSheet4U.com ® STPS80L15TV LOW DROP OR-ing POWER SCHOTTKY DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 40 A 15 V 125.
