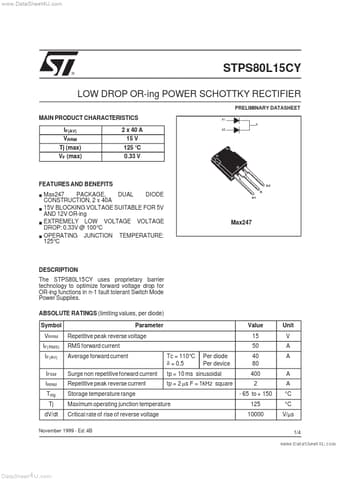

STPS80L15CY Datasheet, Rectifier, ST Microelectronics

STPS80L15CY Features

• Rectifier Max247 PACKAGE, DUAL DIODE CONSTRUCTION, 2 x 40A 15V BLOCKING VOLTAGE SUITABLE FOR 5V AND 12V OR-ing EXTREMELY LOW VOLTAGE VOLTAGE DROP: 0.33V @ 100 °C OPERATING JUNCTION TEMPERATURE: 1

PDF File Details

Part number:

STPS80L15CY

Manufacturer:

STMicroelectronics ↗

File Size:

175.50kb

Download:

📄 Datasheet

Description:

Low drop or-ing power schottky rectifier. The STPS80L15CY uses proprietary barrier technology to optimize forward voltage drop for OR-ing functions in n-1 fault tolerant Switc
