STPS80L30CY

LOW DROP POWER SCHOTTKY RECTIFIER

STPS80L30CY Features

* VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING LOW FORWARD VOLTAGE DROP LOW THERMAL RESISTANCE A1 2 x 40 A 30 V 150 °C 0.38 V A1 K A2 A2 K DESCRIPTION Dual center tap Schottky rectifier suited for CAD computers and servers. Packaged in MAX247, this device is in

STPS80L30CY General Description

Dual center tap Schottky rectifier suited for CAD computers and servers. Packaged in MAX247, this device is intended for use in low voltage, high frequency switching power supplies, free wheeling and polarity protection applications. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) .

STPS80L30CY Datasheet (149.98 KB)

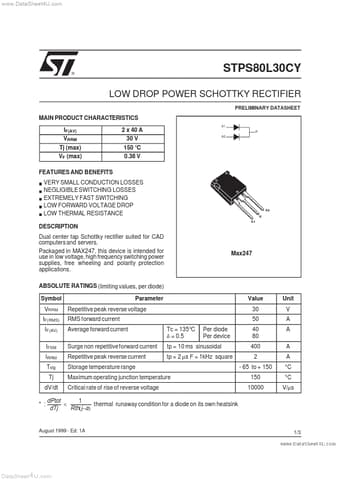

Preview of STPS80L30CY PDF

Datasheet Details

Part number:

STPS80L30CY

Manufacturer:

STMicroelectronics ↗

File Size:

149.98 KB

Description:

Low drop power schottky rectifier.
www.DataSheet4U.com ® STPS80L30CY LOW DROP POWER SCHOTTKY RECTIFIER PRELIMINARY DATASHEET MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max.
