STPS8H100DEE

8A power Schottky rectifier

STMicroelectronics

STPS8H100DEE Features

* Very low conduction losses

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* Avalanche capacity specified

* High junction temperature capability

* ECOPACK2 compliant Description This Schottky rectifier is des

STPS8H100DEE General Description

This Schottky rectifier is designed for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT, this device is intended for use in low voltage, high frequency, inverters, free-wheeling, by-pass diode and polarity protection applications. Its low profile was especially.

STPS8H100DEE Datasheet (380.42 KB)

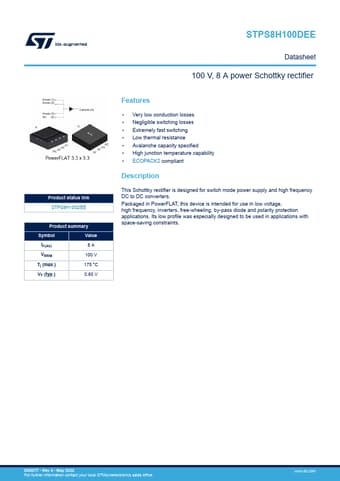

STPS8H100DEE Datasheet Preview — Preview of STPS8H100DEE PDF

Datasheet Details

Part number:

STPS8H100DEE

Manufacturer:

STMicroelectronics ↗

File Size:

380.42 KB

Description:

8a power schottky rectifier.
Product status link STPS8H100DEE Product summary Symbol Value IF(AV) 8A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.60 V STPS8H100DEE Datashee.
