STPS8H100FP, STPS8H100 Datasheet - STMicroelectronics

STPS8H100FP High voltage power Schottky rectifier

Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 8A 100 V 175 °C 0.56 V December 2015 DocID5387 Rev 12 This is information on a produc.

STPS8H100FP Features

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Insulated package:  TO-220FPAC, insulating voltage = 2000 VRMS sine

* Avalanche capability specified

* ECOPACK®2

STPS8H100_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS8H100FP, STPS8H100. Please refer to the document for exact specifications by model.

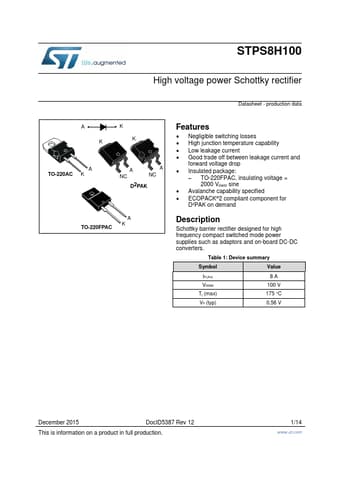

STPS8H100FP Datasheet Preview Page 2 STPS8H100FP Datasheet Preview Page 3

Datasheet Details

Part number:

STPS8H100FP, STPS8H100

Manufacturer:

STMicroelectronics ↗

File Size:

528.00 KB

Description:

High voltage power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS8H100FP, STPS8H100.
Please refer to the document for exact specifications by model.
