STPS8H100 - High voltage power Schottky rectifier

ST Microelectronics

📥 Download Datasheet

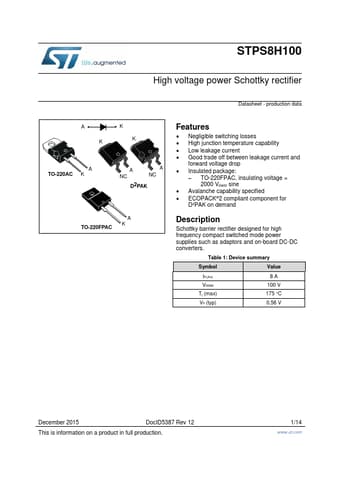

STPS8H100 Datasheet Preview — Preview of STPS8H100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STPS8H100
Manufacturer	STMicroelectronics ↗
File Size	528.00 KB
Description	High voltage power Schottky rectifier
Datasheet	STPS8H100_STMicroelectronics.pdf

STPS8H100 Product details

Description

Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters.

Features

Negligible switching losses.
High junction temperature capability.
Low leakage current.
Good trade off between leakage current and forward voltage drop.
Insulated package:  TO-220FPAC, insulating voltage = 2000 VRMS sine.
Avalanche capability specified.
