STPS8H100D, STPS8H100 High voltage power Schottky rectifier

STMicroelectronics

Description

STPS8H100 High voltage power Schottky rectifier Datasheet - production data A K K K A TO-220AC K A NC A NC D2PAK A TO-220FPAC K .
Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters.

📥 Download Datasheet

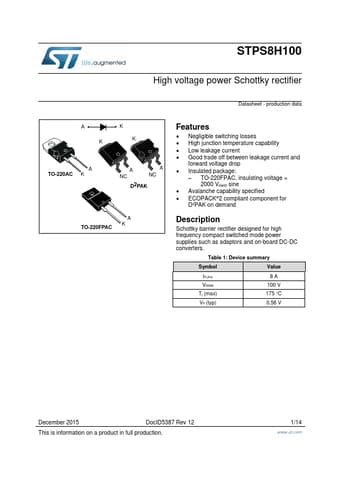

STPS8H100D Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS8H100D, STPS8H100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS8H100D, STPS8H100
Manufacturer: STMicroelectronics ↗
File Size: 528.00 KB
Datasheet: STPS8H100_STMicroelectronics.pdf
Description: High voltage power Schottky rectifier
Note: This datasheet PDF includes multiple part numbers: STPS8H100D, STPS8H100.
Please refer to the document for exact specifications by model.

Features

* Negligible switching losses
* High junction temperature capability
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Insulated package:  TO-220FPAC, insulating voltage = 2000 VRMS sine
* Avalanche capability specified
* ECOPACK®2
