STPS80170CWLY, STPS80170C - Power Schottky Rectifier

STMicroelectronics

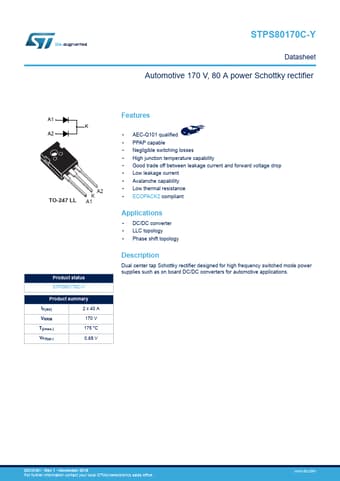

STPS80170CWLY Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS80170CWLY, STPS80170C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STPS80170CWLY, STPS80170C
Manufacturer	STMicroelectronics ↗
File Size	214.25 KB
Description	Power Schottky Rectifier
Datasheet	STPS80170C-TSTMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STPS80170CWLY, STPS80170C. Please refer to the document for exact specifications by model.

STPS80170CWLY Product details

Description

Dual center tap Schottky rectifier designed for high frequency switched mode power supplies such as on board DC/DC converters for automotive applications.

Features

AEC-Q101 qualified.
PPAP capable.
Negligible switching losses.
High junction temperature capability.
Good trade off between leakage current and forward voltage drop.
Low leakage current.
Avalanche capability.
Low thermal resistance.
ECOPACK2 compliant.
