STPS80H100C-Y

Automotive dual 40A low voltage drop power Schottky rectifier

STPS80H100C-Y Features

* AEC-Q101 qualified

* PPAP capable

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* VRRM guaranteed from -40 °C to +175 °C

* Avalanche capability specified

* ECOPACK2 compliant Applications

STPS80H100C-Y General Description

The STPS80H100C-Y has been designed for high frequency switched mode power supply applications for DC/DC converters used in electrical cars. DS13815 - Rev 1 - August 2021 For further information contact your local STMicroelectronics sales office. www.st.com STPS80H100C-Y Characteristics 1 Chara.

STPS80H100C-Y Datasheet (197.94 KB)

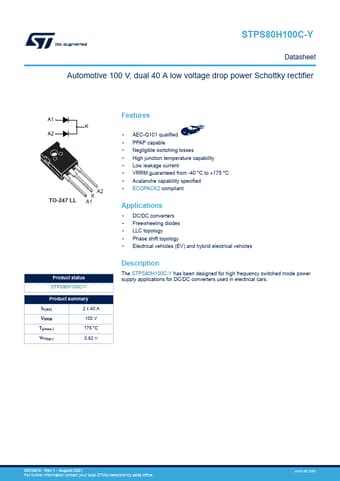

Preview of STPS80H100C-Y PDF

Datasheet Details

Part number:

STPS80H100C-Y

Manufacturer:

STMicroelectronics ↗

File Size:

197.94 KB

Description:

Automotive dual 40a low voltage drop power schottky rectifier.
STPS80H100C-Y Datasheet Automotive 100 V, dual 40 A low voltage drop power Schottky rectifier A1 K A2 TO-247 LL A2 K A1 Product status STPS80H100C.
