STPS8L30, STPS8L30B Low drop power Schottky rectifier

STPS8L30 Description

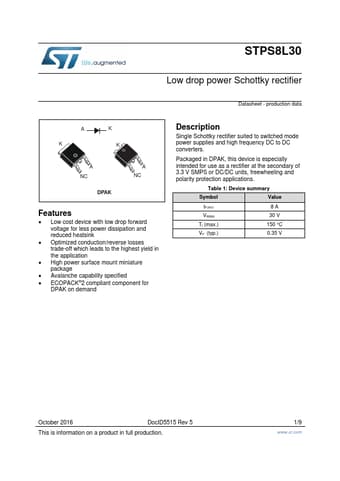

STPS8L30 Low drop power Schottky rectifier Datasheet - production data A K K K A NC DPAK A NC .
Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters.

STPS8L30 Features

* Low cost device with low drop forward voltage for less power dissipation and reduced heatsink

STPS8L30 Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max. ) VF (typ. ) 8A 30 V 150 °C 0.35 V October 2016 DocID5515 Rev 5 This is information on a product in full production. 1/9 www. st. com Characteristics STPS8L30 1 Characteristics Table 2: Absolute ratings (limiting values at 25 °C, u

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS8L30, STPS8L30B. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS8L30, STPS8L30B
Manufacturer
STMicroelectronics ↗
File Size
361.36 KB
Datasheet
STPS8L30B_STMicroelectronics.pdf
Description
Low drop power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS8L30, STPS8L30B.
Please refer to the document for exact specifications by model.
