STS2DPFS20V Datasheet - ST Microelectronics

N-CHANNEL POWER MOSFET

STS2DPFS20V General Description

This product associates the latest low voltage StripFETœ in p-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing, a large variety of DC-DC converters for printers, portable equipment, and cellular phones. SO-8 INTERNAL SCHEMATIC DIAGRAM MOSFET .

STS2DPFS20V Datasheet (293.15 KB)

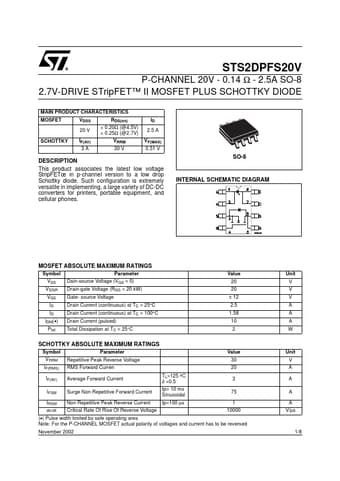

STS2DPFS20V Datasheet Preview — Preview of STS2DPFS20V PDF

Datasheet Details

Part number:

STS2DPFS20V

Manufacturer:

STMicroelectronics ↗

File Size:

293.15 KB

Description:

N-channel power mosfet.
P-CHANNEL 20V - 0.14 Ω - 2.5A SO-8 2.7V-DRIVE STripFET™ II MOSFET PLUS SCHOTTKY DIODE MAIN PRODUCT CHARACTERISTICS MOSFET VDSS 20 V SCHOTTKY IF(AV) 3A.
