STS20NHS3LL Datasheet, Mosfet, ST Microelectronics

STS20NHS3LL Features

  • Mosfet Type STS20NHS3LL VDSS 30V RDS(on) 0.0042Ω ID 20A(1) 1. This value is rated accordingly to Rthj-pcb
  • Optimal RDS(on) x Qg trade-off @ 4.5V Reduce

PDF File Details

Part number:

STS20NHS3LL

Manufacturer:

STMicroelectronics ↗

File Size:

327.01kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This product utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology and a proprietary process for integra

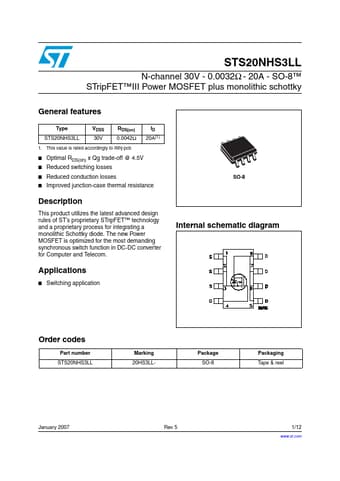

Datasheet Preview: STS20NHS3LL 📥 Download PDF (327.01kb)
Page 2 of STS20NHS3LL Page 3 of STS20NHS3LL

STS20NHS3LL Application

  • Applications
  • Switching application Order codes Part number STS20NHS3LL Marking 20HS3LLPackage SO-8 Packaging Tape & reel January 2007
