STS2NF100 N-CHANNEL POWER MOSFET

ST Microelectronics

Description

N-CHANNEL 100V - 0.23 Ω - 6A SO-8 STripFET™ II POWER MOSFET TYPE STS2NF100 s s s s STS2NF100 VDSS 100 V RDS(on) <0.26 Ω ID 6A TYPICAL RDS(on) = 0.
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

📥 Download Datasheet

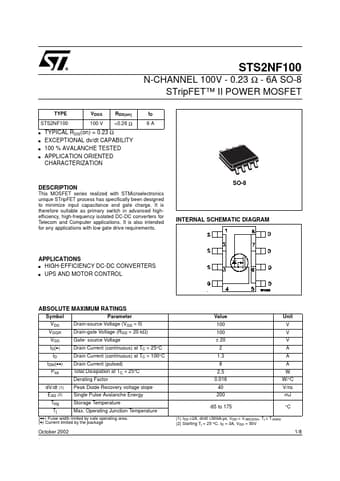

STS2NF100 Datasheet Preview — Preview of STS2NF100 PDF

Datasheet Specifications

Part number: STS2NF100
Manufacturer: STMicroelectronics ↗
File Size: 284.67 KB
Datasheet: STS2NF100_STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

Applications

* It is also intended for any applications with low gate drive requirements. SO-8 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID IDM(
* ) Ptot dV/dt (1) EAS (2) Tstg Tj
