STTH110A Datasheet, Diode, ST Microelectronics

STTH110A Features

  • Diode
  • Low forwarded voltage drop
  • High reliability
  • High surge current capability
  • Soft switching for reduced EMI disturbances
  • Planar technology

PDF File Details

Part number:

STTH110A

Manufacturer:

STMicroelectronics ↗

File Size:

179.79kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. The STTH110, which is using ST ultrafast high voltage planar technology, is especially suited for free-wheeling, clamping, snubbering

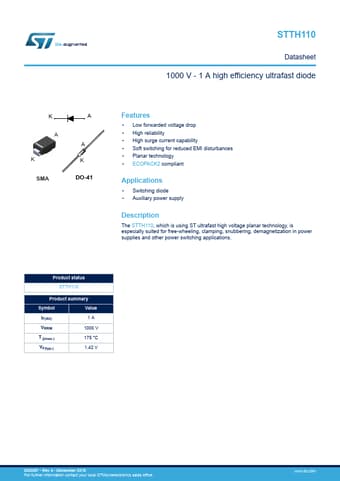

Datasheet Preview: STTH110A 📥 Download PDF (179.79kb)
Page 2 of STTH110A Page 3 of STTH110A

STTH110A Application

  • Applications
  • Switching diode
  • Auxiliary power supply Description The STTH110, which is using ST ultrafast high voltage planar tec
