STTH110-Y Datasheet, Rectifier, STMicroelectronics

STTH110-Y Features

  • Rectifier SMB Flat Wettable leads
  • AEC-Q101 qualified
  • Very low conduction losses
  • Negligible switching losses
  • Low forward and reverse recovery times
  • <

PDF File Details

Part number:

STTH110-Y

Manufacturer:

STMicroelectronics ↗

File Size:

218.28kb

Download:

📄 Datasheet

Description:

Automotive high voltage ultrafast rectifier. The STTH110-Y, which is using ST’s new 1000 V planar technology, is especially suited for switching mode base drive and transistor ci

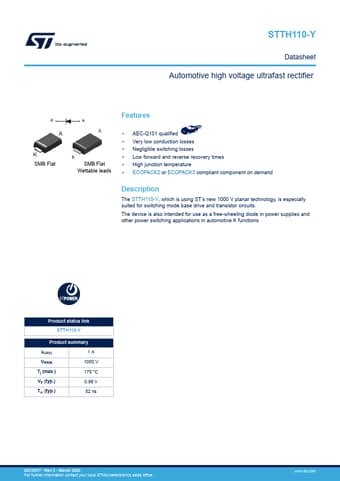

Datasheet Preview: STTH110-Y 📥 Download PDF (218.28kb)
Page 2 of STTH110-Y Page 3 of STTH110-Y

STTH110-Y Application

  • Applications in automotive K functions. Product status link STTH110-Y Product summary IF(AV) 1A VRRM 1000 V Tj (max.) 175 °C VF (typ.) 0.9
