STV7710 - Vacuum Fluorescent Display (VFD) Driver

ST Microelectronics

The STV7710 by ST Microelectronics is a Vacuum Fluorescent Display (VFD) Driver. Below is the official datasheet preview.

📥 Download Datasheet

STV7710 Vacuum Fluorescent Display (VFD) Driver by ST Microelectronics - Datasheet Preview — Official preview page of the STV7710 Vacuum Fluorescent Display (VFD) Driver datasheet (ST Microelectronics).

Datasheet Details

Part number	STV7710
Manufacturer	STMicroelectronics
File Size	246.42 KB
Description	Vacuum Fluorescent Display (VFD) Driver
Datasheet	STV7710_STMicroelectronics.pdf
Additional preview pages of the STV7710 datasheet.

STV7710 Product details

Description

rod STV7710 is a driver for vacuum fluorescent P display (VFD) designed in the ST proprietary BCD te high voltage technology.

Features

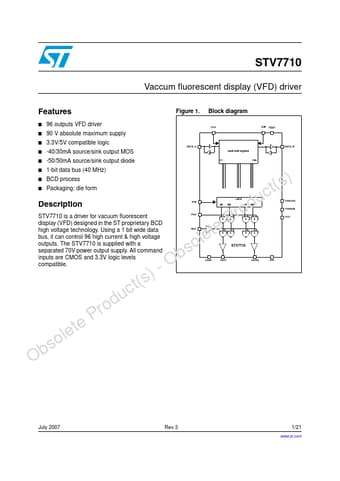

Figure 1. Block diagram.
96 outputs VFD driver.
90 V absolute maximum supply CLK F/R TEST.
3.3V/5V compatible logic.
-40/30mA source/sink output MOS DATA_A 96bit Shift register DATA_B.
-50/50mA source/sink output diode P1 P96.
1-bit data bus (40 MHz) ).
BCD process t(s.
Packaging: die form uc.
