STV7697A Datasheet, Driver, ST Microelectronics

STV7697A Features

• Driver s s s s s s s s s s . 64 OUTPUTS PLASMA DISPLAY DRIVER 170V ABSOLUTE MAXIMUM SUPPLY 5V SUPPLY FOR LOGIC 100/400 mA SOURCE / SINK OUTPUT 700 mA SOURCE / SINK OUTPUT DIODE 64-BIT SHIFT

PDF File Details

Part number:

STV7697A

Manufacturer:

STMicroelectronics ↗

File Size:

110.53kb

Download:

📄 Datasheet

Description:

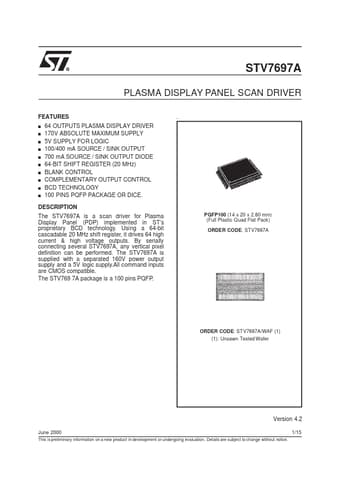

Plasma display panel scan driver. The STV7697A is a scan driver for Plasma Display Panel (PDP) implemented in ST’s proprietary BCD technology. Using a 64-bit cascadabl
