STV7697B - Scan Driver for Plasma Display Panels

Datasheet Summary

Description

The STV7697B is a scan driver for plasma display panels (PDP) implemented in ST’s proprietary BCD (Bi-polar CMOS DMOS) technology.

Using a 64-bit cascadable 8-MHz shift register, it drives 64 highcurrent and high-voltage outputs.

Features

  • s 64-output PDP Scan Driver s 170V Absolute Maximum Rating s 5V Supply for Logic s -200/750 mA Peak Output Current s 1 A Source / Sink Output Diode s 64-bit Shift Register (8 MHz) s Blank Control s Complementary Output Control s BCD Technology s 100 Pin-TQFP Package TQFP100 (14 x 14 x 1.4 mm) (Thin Plastic Quad Flat Pack) ORDER CODE: STV7697B.

📥 Download Datasheet

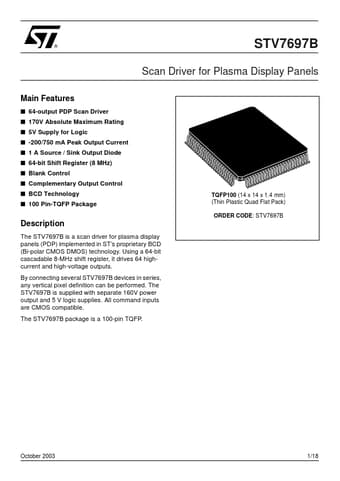

Datasheet preview – STV7697B

Datasheet Details

Part number STV7697B
Manufacturer STMicroelectronics
File Size 155.40 KB
Description Scan Driver for Plasma Display Panels
Datasheet download datasheet STV7697B Datasheet
Additional preview pages of the STV7697B datasheet.

📁 Similar Datasheet

  • STV7697 - PLASMA DISPLAY PANEL SCAN DRIVER (STMicroelectronics)
  • STV-2520 - CRYSTAL OSCILLATOR (SIWARD)
  • STV-3225 - CRYSTAL OSCILLATOR (SIWARD)
  • STV0297E - QAM demodulator (STMicroelectronics)
  • STV0498 - DOCSIS 2.0+ cable modem (STMicroelectronics)
  • STV0900 - Multistandard advanced dual demodulator (STMicroelectronics)
  • STV0903 - Multi-standard advanced demodulator (STMicroelectronics)
  • STV0910 - Multi-standard advanced dual demodulator (STMicroelectronics)
  • STV2000 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 70 MHz RGB PREAMPLIFIER (STMicroelectronics)
  • STV2001 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 120 MHz RGB PREAMPLIFIER (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STV7697A - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7699 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7610A - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7617 - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7620 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7620M - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7710 - Vacuum Fluorescent Display (VFD) Driver
  • STV7778S - DEFLECTION PROCESSOR FOR MULTISYNC MONITOR

Full PDF Text Transcription

Click to expand full text
® STV7697B Scan Driver for Plasma Display Panels Main Features s 64-output PDP Scan Driver s 170V Absolute Maximum Rating s 5V Supply for Logic s -200/750 mA Peak Output Current s 1 A Source / Sink Output Diode s 64-bit Shift Register (8 MHz) s Blank Control s Complementary Output Control s BCD Technology s 100 Pin-TQFP Package TQFP100 (14 x 14 x 1.4 mm) (Thin Plastic Quad Flat Pack) ORDER CODE: STV7697B Description The STV7697B is a scan driver for plasma display panels (PDP) implemented in ST’s proprietary BCD (Bi-polar CMOS DMOS) technology. Using a 64-bit cascadable 8-MHz shift register, it drives 64 highcurrent and high-voltage outputs. By connecting several STV7697B devices in series, any vertical pixel definition can be performed.
