STV7610A - PLASMA DISPLAY PANEL DATA DRIVER

Datasheet Summary

Description

The STV7610A is a BCD data driver for Plasma Display Panel (PDP).

Using a 6-bit wide cascadable data bus, it addresses 96 high current & high voltage outputs.

By serially connecting several STV7610A, any horizontal pixel definition can be performed.

📥 Download Datasheet

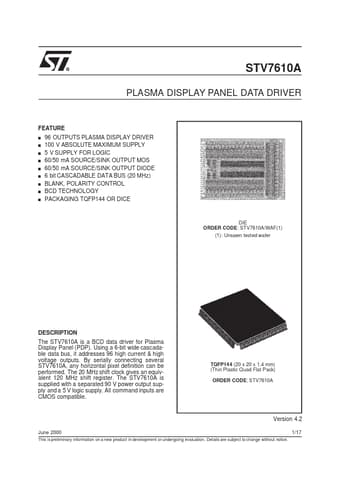

Datasheet preview – STV7610A

Datasheet Details

Part number STV7610A
Manufacturer STMicroelectronics
File Size 142.61 KB
Description PLASMA DISPLAY PANEL DATA DRIVER
Datasheet download datasheet STV7610A Datasheet
Additional preview pages of the STV7610A datasheet.

📁 Similar Datasheet

  • STV7697 - PLASMA DISPLAY PANEL SCAN DRIVER (STMicroelectronics)
  • STV-2520 - CRYSTAL OSCILLATOR (SIWARD)
  • STV-3225 - CRYSTAL OSCILLATOR (SIWARD)
  • STV0297E - QAM demodulator (STMicroelectronics)
  • STV0498 - DOCSIS 2.0+ cable modem (STMicroelectronics)
  • STV0900 - Multistandard advanced dual demodulator (STMicroelectronics)
  • STV0903 - Multi-standard advanced demodulator (STMicroelectronics)
  • STV0910 - Multi-standard advanced dual demodulator (STMicroelectronics)
  • STV2000 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 70 MHz RGB PREAMPLIFIER (STMicroelectronics)
  • STV2001 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 120 MHz RGB PREAMPLIFIER (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STV7617 - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7620 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7620M - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7697A - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7697B - Scan Driver for Plasma Display Panels
  • STV7699 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7710 - Vacuum Fluorescent Display (VFD) Driver
  • STV7778S - DEFLECTION PROCESSOR FOR MULTISYNC MONITOR

Full PDF Text Transcription

Click to expand full text
STV7610A PLASMA DISPLAY PANEL DATA DRIVER FEATURE s s s s s s s s s 96 OUTPUTS PLASMA DISPLAY DRIVER 100 V ABSOLUTE MAXIMUM SUPPLY 5 V SUPPLY FOR LOGIC 60/50 mA SOURCE/SINK OUTPUT MOS 60/50 mA SOURCE/SINK OUTPUT DIODE 6 bit CASCADABLE DATA BUS (20 MHz) BLANK, POLARITY CONTROL BCD TECHNOLOGY PACKAGING TQFP144 OR DICE DIE ORDER CODE: STV7610A/WAF(1) (1): Unsawn tested wafer DESCRIPTION The STV7610A is a BCD data driver for Plasma Display Panel (PDP). Using a 6-bit wide cascadable data bus, it addresses 96 high current & high voltage outputs. By serially connecting several STV7610A, any horizontal pixel definition can be performed. The 20 MHz shift clock gives an equivalent 120 MHz shift register. The STV7610A is supplied with a separated 90 V power output supply and a 5 V logic supply.
