STV7620M - PLASMA DISPLAY PANEL DATA DRIVER

Datasheet Summary

Description

STV7620M is a data driver for Plasma Display Panels (PDPs) designed in the ST’s proprietary BCD high voltage technology.

A new shape of the output pulse generated by the STV7620M ensures a noticeable EMI reduction.

Features

  • s s s s s s s s 96 Outputs Plasma Display Driver 95V Absolute Maximum Rating Reduced EMI (Electro Magnetic Interference) 3.3 V/ 5V Compatible Logic -40 / 30mA Source / Sink Output Mos 3 or 6 Bit Data Bus (40MHz) BCD Process Packaging Adapted to Customer Request (DICE, COB, COF, TAB).

📥 Download Datasheet

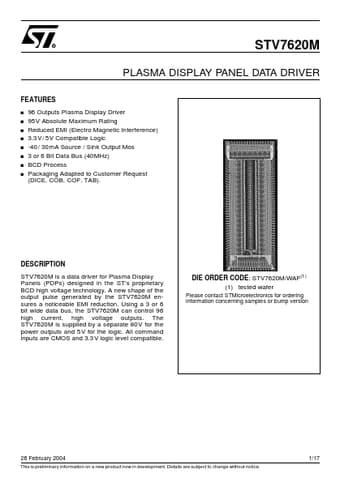

Datasheet preview – STV7620M

Datasheet Details

Part number STV7620M
Manufacturer STMicroelectronics
File Size 317.03 KB
Description PLASMA DISPLAY PANEL DATA DRIVER
Datasheet download datasheet STV7620M Datasheet
Additional preview pages of the STV7620M datasheet.

📁 Similar Datasheet

  • STV7697 - PLASMA DISPLAY PANEL SCAN DRIVER (STMicroelectronics)
  • STV-2520 - CRYSTAL OSCILLATOR (SIWARD)
  • STV-3225 - CRYSTAL OSCILLATOR (SIWARD)
  • STV0297E - QAM demodulator (STMicroelectronics)
  • STV0498 - DOCSIS 2.0+ cable modem (STMicroelectronics)
  • STV0900 - Multistandard advanced dual demodulator (STMicroelectronics)
  • STV0903 - Multi-standard advanced demodulator (STMicroelectronics)
  • STV0910 - Multi-standard advanced dual demodulator (STMicroelectronics)
  • STV2000 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 70 MHz RGB PREAMPLIFIER (STMicroelectronics)
  • STV2001 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 120 MHz RGB PREAMPLIFIER (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STV7620 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7610A - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7617 - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7697A - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7697B - Scan Driver for Plasma Display Panels
  • STV7699 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7710 - Vacuum Fluorescent Display (VFD) Driver
  • STV7778S - DEFLECTION PROCESSOR FOR MULTISYNC MONITOR

Full PDF Text Transcription

Click to expand full text
STV7620M PLASMA DISPLAY PANEL DATA DRIVER FEATURES s s s s s s s s 96 Outputs Plasma Display Driver 95V Absolute Maximum Rating Reduced EMI (Electro Magnetic Interference) 3.3 V/ 5V Compatible Logic -40 / 30mA Source / Sink Output Mos 3 or 6 Bit Data Bus (40MHz) BCD Process Packaging Adapted to Customer Request (DICE, COB, COF, TAB). DESCRIPTION STV7620M is a data driver for Plasma Display Panels (PDPs) designed in the ST’s proprietary BCD high voltage technology. A new shape of the output pulse generated by the STV7620M ensures a noticeable EMI reduction. Using a 3 or 6 bit wide data bus, the STV7620M can control 96 high current, high voltage outputs. The STV7620M is supplied by a separate 80V for the power outputs and 5 V for the logic. All command inputs are CMOS and 3.
