STV7699

PLASMA DISPLAY PANEL DATA DRIVER

ST Microelectronics

STV7699 General Description

The STV7699 is a Plasma Display Panel (PDP) data driver implemented in ST’s proprietary BCD technology. Using a 4-bit wide cascadable shift register, it drives 64 high current & high voltage outputs. By serialy connecting several STV7699, any horizontal pixel definition can be performed. The 20MHz s.

STV7699 Datasheet (108.80 KB)

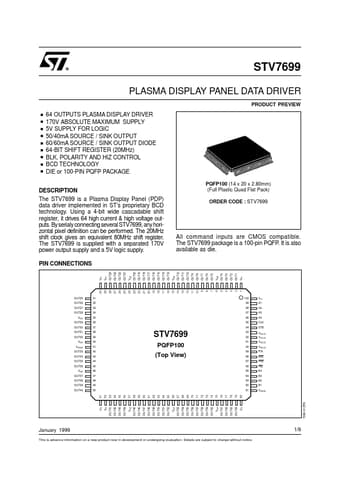

STV7699 Datasheet Preview — Preview of STV7699 PDF

Datasheet Details

Part number:

STV7699

Manufacturer:

STMicroelectronics ↗

File Size:

108.80 KB

Description:

Plasma display panel data driver.
STV7699 PLASMA DISPLAY PANEL DATA DRIVER . . . . . . . . . PRODUCT PREVIEW 64 OUTPUTS PLASMA DISPLAY DRIVER 170V ABSOLUTE MAXIMUM SUPPLY 5V SUPPLY .
