STV7620

PLASMA DISPLAY PANEL DATA DRIVER

STV7620 Features

* s s s s s s s s 96 Outputs Plasma Display Driver 90V Absolute Maximum Rating Reduced EMI (Electro Magnetic Interference) 3.3V / 5V Compatible Logic -40 / 30 mA Source / Sink Output Mos 6 Bit Data Bus (40 MHz) BCD Process Packaging Adapted to Customer Request (DICE, COB, COF, TAB). DESCRIPTION STV7

STV7620 General Description

STV7620S/M/F is a data driver for Plasma Display Panel (PDP) designed in the ST proprietary BCD high voltage technology. A new shape of the output pulse generated by the STV7620S/M/F ensures a noticeable EMI reduction. Three different versions are available with various falling edge shapes. Using a .

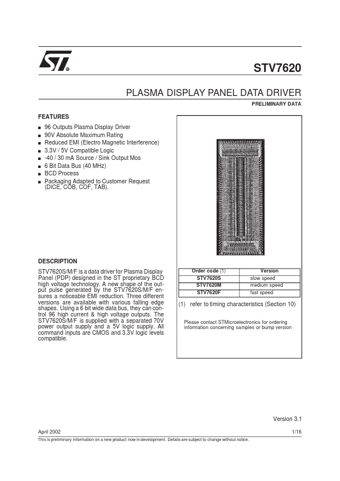

STV7620 Datasheet (136.56 KB)

Preview of STV7620 PDF

Datasheet Details

Part number:

STV7620

Manufacturer:

STMicroelectronics ↗

File Size:

136.56 KB

Description:

Plasma display panel data driver.
