STV7617 - PLASMA DISPLAY PANEL SCAN DRIVER

Datasheet Summary

Description

The STV7617 is a scan driver for Plasma Display Panel (PDP) implemented in ST’s proprietary BCD technology.

Using a 65-bit cascadable 8 MHz shift register, it drives 65 high current & high voltage outputs.

The STV7617 can be configured either in 64 or 65 outputs depending on the SEL input Pin.

📥 Download Datasheet

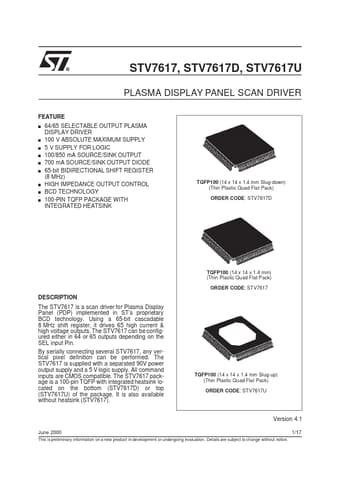

Datasheet preview – STV7617

Datasheet Details

Part number STV7617
Manufacturer STMicroelectronics
File Size 124.00 KB
Description PLASMA DISPLAY PANEL SCAN DRIVER
Datasheet download datasheet STV7617 Datasheet
Additional preview pages of the STV7617 datasheet.

📁 Similar Datasheet

  • STV7697 - PLASMA DISPLAY PANEL SCAN DRIVER (STMicroelectronics)
  • STV-2520 - CRYSTAL OSCILLATOR (SIWARD)
  • STV-3225 - CRYSTAL OSCILLATOR (SIWARD)
  • STV0297E - QAM demodulator (STMicroelectronics)
  • STV0498 - DOCSIS 2.0+ cable modem (STMicroelectronics)
  • STV0900 - Multistandard advanced dual demodulator (STMicroelectronics)
  • STV0903 - Multi-standard advanced demodulator (STMicroelectronics)
  • STV0910 - Multi-standard advanced dual demodulator (STMicroelectronics)
  • STV2000 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 70 MHz RGB PREAMPLIFIER (STMicroelectronics)
  • STV2001 - I2C SINGLE FREQUENCY DEFLECTION PROCESSOR AND 120 MHz RGB PREAMPLIFIER (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STV7610A - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7620 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7620M - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7697A - PLASMA DISPLAY PANEL SCAN DRIVER
  • STV7697B - Scan Driver for Plasma Display Panels
  • STV7699 - PLASMA DISPLAY PANEL DATA DRIVER
  • STV7710 - Vacuum Fluorescent Display (VFD) Driver
  • STV7778S - DEFLECTION PROCESSOR FOR MULTISYNC MONITOR

Full PDF Text Transcription

Click to expand full text
STV7617, STV7617D, STV7617U PLASMA DISPLAY PANEL SCAN DRIVER FEATURE s s s s s s s s s 64/65 SELECTABLE OUTPUT PLASMA DISPLAY DRIVER 100 V ABSOLUTE MAXIMUM SUPPLY 5 V SUPPLY FOR LOGIC 100/850 mA SOURCE/SINK OUTPUT 700 mA SOURCE/SINK OUTPUT DIODE 65-bit BIDIRECTIONAL SHIFT REGISTER (8 MHz) HIGH IMPEDANCE OUTPUT CONTROL BCD TECHNOLOGY 100-PIN TQFP PACKAGE WITH INTEGRATED HEATSINK TQFP100 (14 x 14 x 1.4 mm Slug-down) (Thin Plastic Quad Flat Pack) ORDER CODE: STV7617D TQFP100 (14 x 14 x 1.4 mm) (Thin Plastic Quad Flat Pack) ORDER CODE: STV7617 DESCRIPTION The STV7617 is a scan driver for Plasma Display Panel (PDP) implemented in ST’s proprietary BCD technology. Using a 65-bit cascadable 8 MHz shift register, it drives 65 high current & high voltage outputs.
