STV7697

PLASMA DISPLAY PANEL SCAN DRIVER

STMicroelectronics

STV7697 General Description

The STV7697 is a scan driver for Plasma Display Panel (PDP) implemented in SGS-THOMSON’s proprietary BCD technology.Using a 64-bit cascadable 20MHz shift register, it drives 64 high current & high voltage outputs. By serialy connecting several STV7697, any vertical pixel definition can be performed..

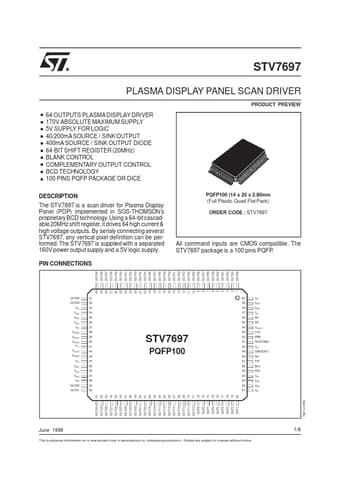

STV7697 Datasheet (73.56 KB)

STV7697 Datasheet Preview — Preview of STV7697 PDF

Datasheet Details

Part number:

STV7697

Manufacturer:

STMicroelectronics ↗

File Size:

73.56 KB

Description:

Plasma display panel scan driver.
STV7697 PLASMA DISPLAY PANEL SCAN DRIVER 64 OUTPUTS PLASMADISPLAY DRIVER 170V ABSOLUTE MAXIMUM SUPPLY 5V SUPPLY FOR LOGIC 40/200mA SOURCE / SINK OU.
