STW14NB50 Datasheet (ST Microelectronics)

STW14NB50, N-CHANNEL POWER MOSFET

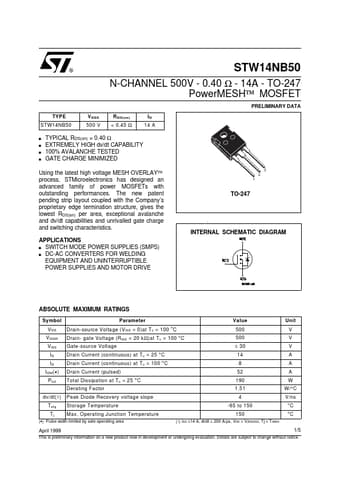

® STW14NB50 N-CHANNEL 500V - 0.40 Ω - 14A - TO-247 PowerMESH™ MOSFET PRELIMINARY DATA TYPE STW14NB50 s s s s V DSS 500 V R DS(on) < 0.45 Ω ID 14 A TYPICAL RDS(on) = 0.40 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED 3 2 1 Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

The new patent pending strip layout coupled with the Company’s proprietary edge termina
