STW14NK50Z Datasheet, Mosfet, ST Microelectronics

STW14NK50Z Features

  • Mosfet Type STP14NK50Z STP14NK50ZFP STB14NK50Z STB14NK50Z-1 STW14NK50Z VDSS 500V 500V 500V 500V 500V RDS(on) ID <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A Pw 150W 35W 150W 150W

PDF File Details

Part number:

STW14NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

619.45kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

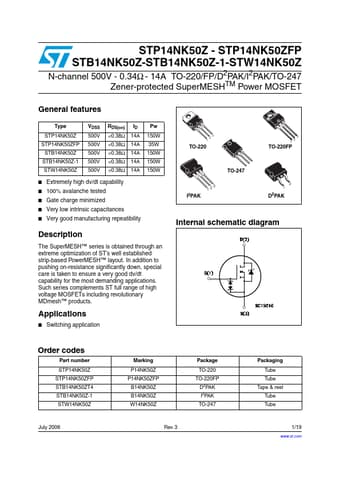

Datasheet Preview: STW14NK50Z 📥 Download PDF (619.45kb)
Page 2 of STW14NK50Z Page 3 of STW14NK50Z

STW14NK50Z Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
  • Switchi
