STW14NK60Z - N-CHANNEL POWER MOSFET

ST Microelectronics

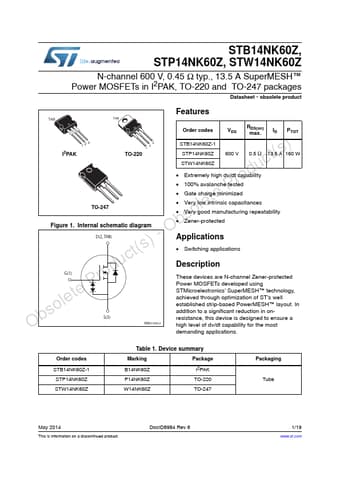

The STW14NK60Z by ST Microelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STW14NK60Z N-CHANNEL POWER MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STW14NK60Z** N-CHANNEL POWER MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STW14NK60Z
Manufacturer	STMicroelectronics
File Size	430.43 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STW14NK60Z_STMicroelectronics.pdf
Additional preview pages of the STW14NK60Z datasheet.

STW14NK60Z Product details

Description

These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout.

Features

TAB TAB Order codes VDS RDS(on) max. ID PTOT 123 t(s)I2PAK 3 2 1 TO-220 lete ProducTO-247 bsoFigure 1. Internal schematic diagram - OD(2, TAB) duct(s)G(1) solete ProS(3) Ob AM01476v1 STB14NK60Z-1 STP14NK60Z 600 V 0.5 Ω 13.5 A 160 W STW14NK60Z.
Extremely high dv/dt capability.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitances.
Very good manufacturing repeatability.
Zener-protected.
