STW14NM50 Datasheet, Mosfet, ST Microelectronics

STW14NM50 Features

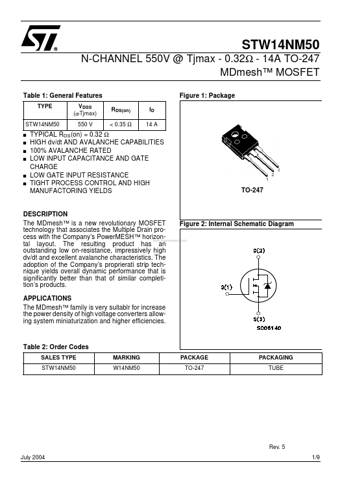

• Mosfet TYPE STW14NM50 s s s s Figure 1: Package RDS(on) < 0.35 Ω ID 14 A VDSS (@Tjmax) 550 V s s TYPICAL RDS(on) = 0.32 Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE RATED LOW INP

PDF File Details

Part number:

STW14NM50

Manufacturer:

STMicroelectronics ↗

File Size:

267.36kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The MDmesh™ is a new revolutionary MOSFET Figure 2: Internal Schematic Diagram technology that associates the Multiple Drain process

STW14NM50 Application

• Applications The MDmesh™ family is very suitablr for increase the power density of high voltage converters allowing system miniaturization and highe
