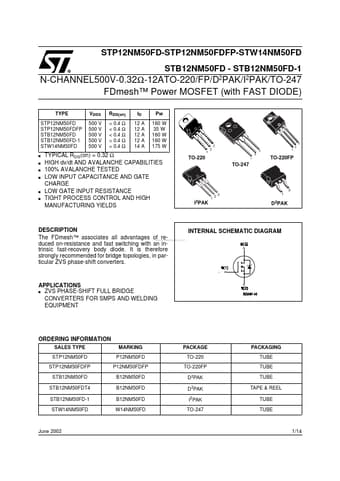

STW14NM50FD, N-CHANNEL POWER MOSFET
INTERNAL SCHEMATIC DIAGRAM The FDmesh™ associates all advantages of rewww.DataSheet4U.com duced on-resistance and fast switching with an intrinsic fast-recovery body diode.
It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters.
APPLICATIONS s ZVS PHASE
STP12NM50FD-STP12NM50FDFP-STW14NM50FD STB12NM50FD - STB12NM50FD-1 N-CHANNEL500V-0.32Ω-12ATO-220/FP/D2PAK/I2PAK/TO-247 FDmesh™ Power MOSFET (with FAST DIODE) TYPE STP12NM50FD STP12NM50FDFP STB12NM50FD STB12NM50FD-1 STW14NM50FD s s s s VDSS 500 V 500 V 500 V 500 V 500 V RDS(on) < < < < < 0.4 Ω 0.4 Ω 0.4 Ω 0.4 Ω 0.4 Ω ID 12 12 12 12 14 A A A A A Pw 160 W 35 W 160 W 160 W 175 W 3 3 1 2 2 1 s s TYPICAL RDS(on) = 0.32 Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE TESTED LOW INPUT CAPA
