STW16NA40 Datasheet - ST Microelectronics

STW16NA40 N - CHANNEL 400V - 0.21ohm - 16A - TO-247/ISOWATT218 POWER MOS TRANSISTORS

® STW16NA40 STH16NA40FI N - CHANNEL 400V - 0.21Ω - 16A - TO-247/ISOWATT218 POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STW16NA40 STH16NA40FI s s s s s V DSS 400 V 400V R DS(on) < 0.3 Ω < 0.3 Ω ID 16 A 10 A TYPICAL RDS(on) = 0.21 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s CHOPPER REGULATORS, CONVERTERS, MO.

STW16NA40_STMicroelectronics.pdf

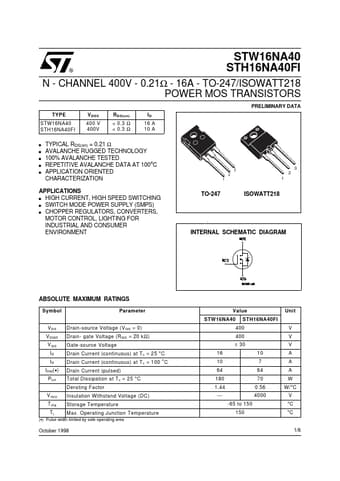

Preview of STW16NA40 PDF
STW16NA40 Datasheet Preview Page 2 STW16NA40 Datasheet Preview Page 3

Datasheet Details

Part number:

STW16NA40

Manufacturer:

STMicroelectronics ↗

File Size:

73.51 KB

Description:

N - channel 400v - 0.21ohm - 16a - to-247/isowatt218 power mos transistors.
