STW16N65M5 - N-channel Power MOSFET

STMicroelectronics

STW16N65M5 Datasheet Preview — Preview of STW16N65M5 PDF

Datasheet Details

Part number	STW16N65M5
Manufacturer	STMicroelectronics ↗
File Size	1.07 MB
Description	N-channel Power MOSFET
Datasheet	STW16N65M5-STMicroelectronics.pdf

STW16N65M5 Product details

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

Type STF16N65M5 STI16N65M5 STP16N65M5 STU16N65M5 STW16N65M5 VDSS @ TJmax RDS(on) max 710 V < 0.279 Ω.
Worldwide best RDS(on).
Higher VDSS rating.
High dv/dt capability.
Excellent switching performance.
Easy to drive.

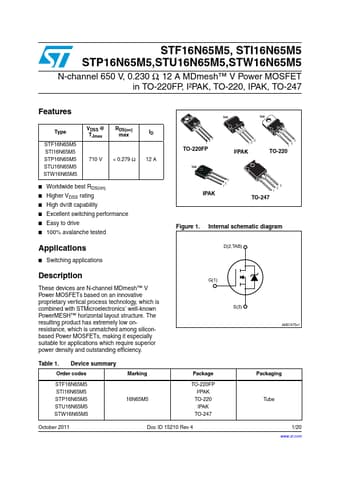

100% avalanche tested ID 12 A TAB TAB 3 2 1 TO-220FP 123 I²PAK 3 2 1 TO-220 TAB IPAK 3 2 1 3 2 1 TO-247 Figure 1. Internal schematic diagram.
