STW16NA60 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STW16NA60 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STW16NA60 s s V DSS 600 V R DS(on) < 0.4 Ω ID 16 A s s s s s TYPICAL RDS(on) = 0.33 Ω ± 30V GATE TO SOURCE VOLTAGE RANTING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCE GATE CHARGE MINIMIZED REDUCED VOLTAGE SPREAD TO-247 3 2 1 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s CONSUMER AND INDUSTRIAL LIGHTING s DC-AC CONVERTER FOR W.

STW16NA60_STMicroelectronics.pdf

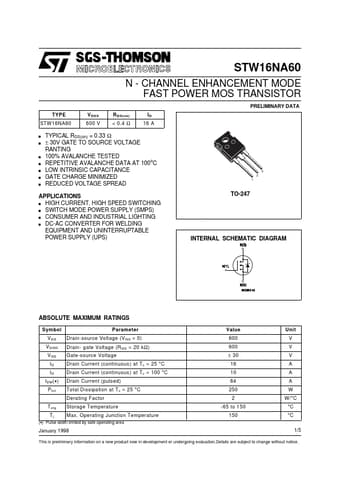

Preview of STW16NA60 PDF
STW16NA60 Datasheet Preview Page 2 STW16NA60 Datasheet Preview Page 3

Datasheet Details

Part number:

STW16NA60

Manufacturer:

STMicroelectronics ↗

File Size:

75.35 KB

Description:

N - channel enhancement mode fast power mos transistor.
