STW16NA40_STMicroelectronics.pdf
Datasheet Details
Part number:
STW16NA40FI, STW16NA40
Manufacturer:
File Size:
73.51 KB
Description:
N - channel 400v - 0.21ohm - 16a - to-247/isowatt218 power mos transistors.
Note:
This datasheet PDF includes multiple part numbers: STW16NA40FI, STW16NA40.
Please refer to the document for exact specifications by model.
STW16NA40FI, STW16NA40, N - CHANNEL 400V - 0.21ohm - 16A - TO-247/ISOWATT218 POWER MOS TRANSISTORS

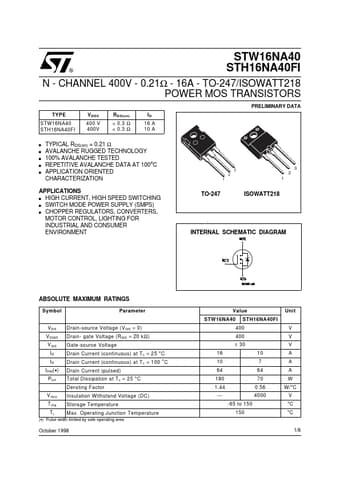

® STW16NA40 STH16NA40FI N - CHANNEL 400V - 0.21Ω - 16A - TO-247/ISOWATT218 POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STW16NA40 STH16NA40FI s s s s s V DSS 400 V 400V R DS(on) < 0.3 Ω < 0.3 Ω ID 16 A 10 A TYPICAL RDS(on) = 0.21 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s CHOPPER REGULATORS, CONVERTERS, MO
