STW16NB60 N-channel Power MOSFET

STMicroelectronics

Description

STW16NB60 N-CHANNEL 600V - 0.3Ω - 16A TO-247 PowerMesh™ MOSFET TYPE STW16NB60 www.DataSheet4U.com s TYPICAL s s s s VDSS 600V RDS(on) < 0.35 Ω ID 1.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

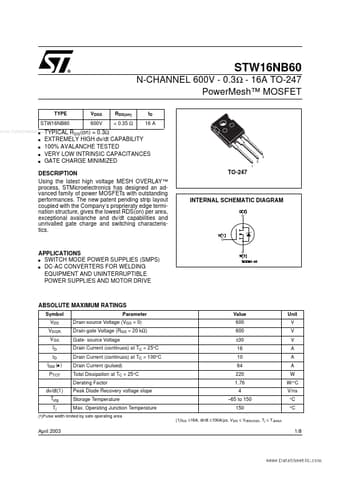

STW16NB60 Datasheet Preview — Preview of STW16NB60 PDF

Datasheet Specifications

Part number: STW16NB60
Manufacturer: STMicroelectronics ↗
File Size: 205.89 KB
Datasheet: STW16NB60_STMicroelectronics.pdf
Description: N-channel Power MOSFET

Applications

* SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt(1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Vol
