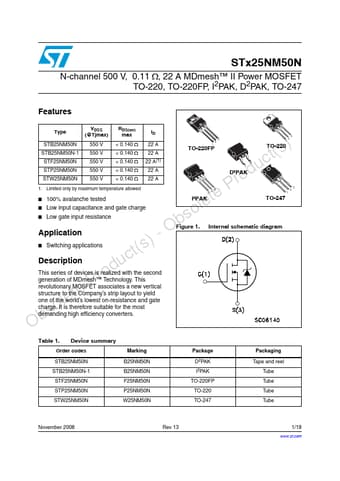

STW25NM50N N-CHANNEL Power MOSFET

The STP25NM50N is realized with the second generation of MDmesh Technology. This revolutionary MOSFET associates a new vertical structure to the Company's strip layout to yield one of the world's lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency co.

STW25NM50N Features

* TYPE STB25NM50N-1 STF25NM50N STP25NM50N STW25NM50N STB25NM50N s s s Figure 1: Package ID 22 A 22 A(

* ) 22 A 22 A 22 A RDS(on) 0.140 0.140 0.140 0.140 0.140 Ω Ω Ω Ω Ω VDSS (@TjMAX) 550V 550V 550V 550V 550V 3 1 2 3 12 TO-220 3 1 I²PAK s HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE T
